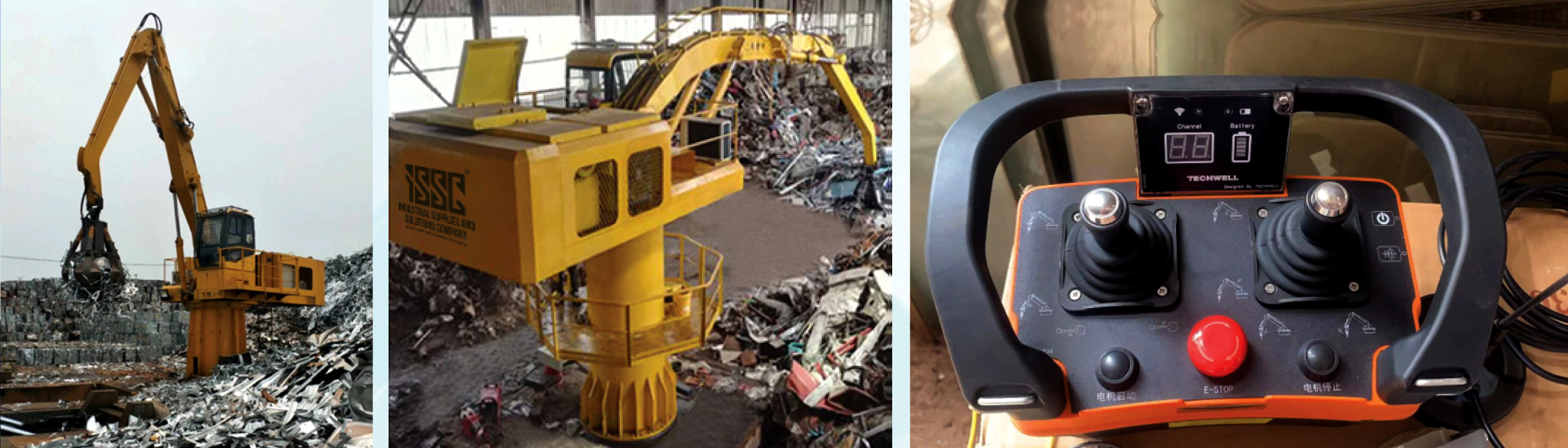

HEAVY DUTY SCRAP YARD CRANES (Stationary Rotating)

Steel scrap handlers are purpose-built for the recycling industry to perform effective, high-volume material handling duties. Steel scrap handling models that can be operated in either open terrain or indoor settings.

No Project 8M 10M 12M 14M
1 Dead Weight 17000 Kg 20000 Kg 25000 Kg 30000 Kg
2 Electric Motor Power 55Kw 75Kw 75Kw 110Kw
Spinning Speed 1480Rpm 1480Rpm 1480Rpm 1480Rpm
Voltage 415V 415V 415V 415V
Frequency 50Hz 50Hz 50Hz 50Hz
3 Hydraulic System Work Pressure 32Mpa 32Mpa 32Mpa 32Mpa
4 Hydraulic Motor Spinning Speed 0-8rpm 0-9rpm 0-9.5rpm 0-9.5rpm
5 Cylinder The Inlet Is Sealed & The Boom Is Equipped With An Explosion-Proof Valve
6 Air Conditioner 1P Yangtze Air Conditioner
7 Cab Lift Height 1200mm 1200mm 1900mm 1900mm
8 Boom Length 5000mm 6200mm 7500mm 8600mm
9 Forearm Length 3000mm 4000mm 5000mm 6000mm
Grab Head Parameters
10 Grab Volume 0.6M3 0.6M3 0.6M3 0.6M3
11 Grab Number 5 5 5 5
Heavy Duty Scrap Yard Cranes - Industrial Supplies and Solutions Company(ISSC), Chennai.

HEAVY DUTY PLATFORM CRANES (Stationary Rotating)

No Project 8M 10M 12M 14M
1 Dead Weight 10500 Kg 12500 Kg 14000 Kg 16000 Kg
2 Electric Motor Power 30Kw 30Kw 37Kw 37Kw
Spinning Speed 1480Rpm 1480Rpm 1480Rpm 1480Rpm
Voltage 415V 415V 415V 415V
Frequency 50Hz 50Hz 50Hz 50Hz
3 Hydraulic System Main Pump A10V063 Rexroth Rexroth Rexroth Japan Kyb/Parker
Main Valve Sx12 Rexroth Rexroth Rexroth Kawasaki/Doosan
Limited Data 90L/Min 90L/Min 90L/Min 2*50 + 15 L/Min
Work Pressure 25 Mpa 25 Mpa 25 Mpa 28 Mpa
4 Hydraulic Motor Spinning Speed 0-4.5 Rpm 0-4.5 Rpm 0-4.5 Rpm 0-3 Rpm
5 Air Conditioner 1P Yangtze Air Conditioner
6 Boom Length 5000mm 6000mm 7500mm 8600mm
7 Forearm Length 3000mm 4000mm 5000mm 6000mm
8 Grab Volume 0.4M3 0.4M3 0.35M3 0.4M3
9 Grab Number 5 5 5 5

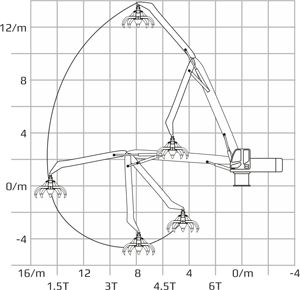

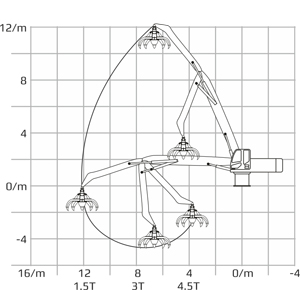

8m – Crane
10m – Crane
12m – Crane
14m – Crane
